産品描述：

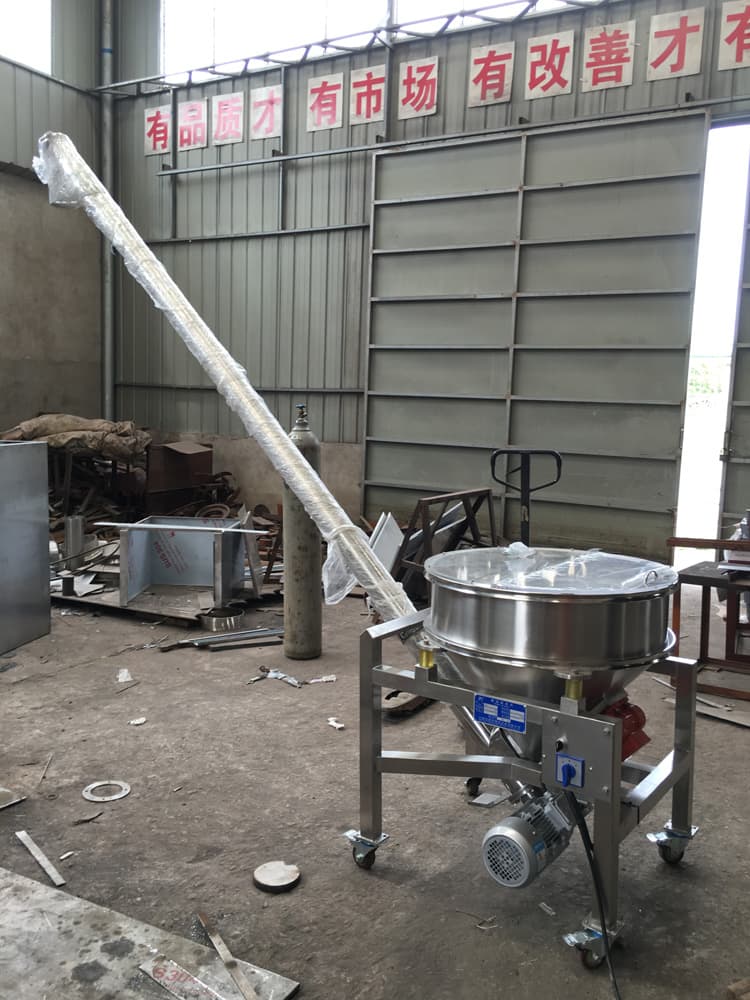

該機是利用電機帶動螺旋回轉，推動物料以實現輸送的機械。

它能水平、傾斜或垂直輸送，是輸送各種粉粒料的理想設備。

The machine uses motor to drive spiral rotation and to promote material to realize conveying.

It can be transported horizontally , obliquely or vertically . It is an ideal equipment for transporting various kinds of powder.

産品應用：

可與許多粉狀或顆粒狀産品的包裝相匹配。

适用于食品、醫藥、化工、粉體、味精等行業。

Competible with many packing equipments for powder or granule products.

Applicale with food pharmaceutical and chemical industry etc powder, monosodium glutamate etc.

産品特點：

1.Humanization design, easy dismantle, separate product contact parts for cleaning without tools, no uncovered corners, particulary suitable for food packing industry.

It takes one person one minute to complete the entir dismantlement process. It saves time and energy, safe and efficient.

2.Hopper with arch breaker device to help you to solve bridge issue.

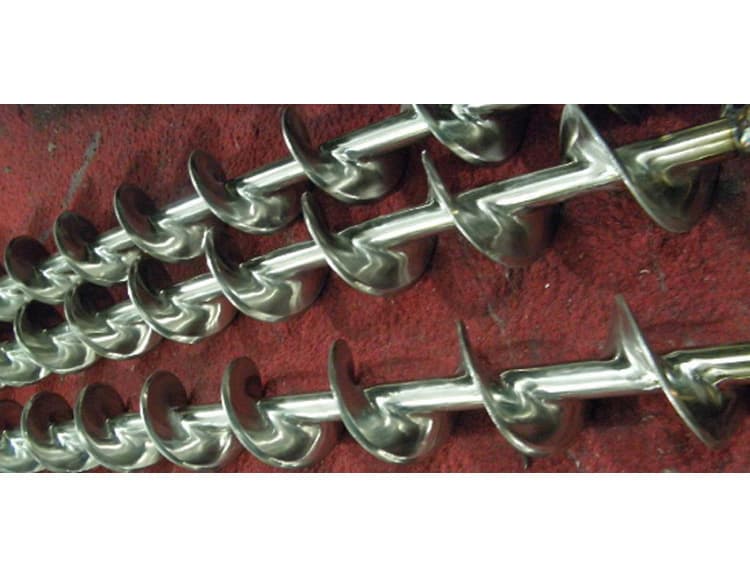

3. Upgeade component: Polished screw, Semi-opening tube.

4. This model offers both standard and customized machine of your choice.

輸送仰角β=450，螺旋轉速n=134r/min（可加裝變頻調速）Conveying elevationβ=450, screw speed n=134r/min( variable frequency speed can be installed)
型号	STLS-10	STLS-12	STLS-14	STLS-16	STLS-20	STLS-25
筒内徑	100	120	140	160	200	250
電機功率	0.75	1.1	1.5	2.2	4	5.5
*大裝料重量(t/h)	0.5-2	0.8-2.5	1-4	1.5-6	2-8	3-10
