产品详情
cases Details
应用:
本机适用于医药、化工、食品等行业对干粉物料的粒度进行分选。
This machine is applied in the sorting of the granule size of dry powder materials in trades of medicine, chemical and foodstuff etc.

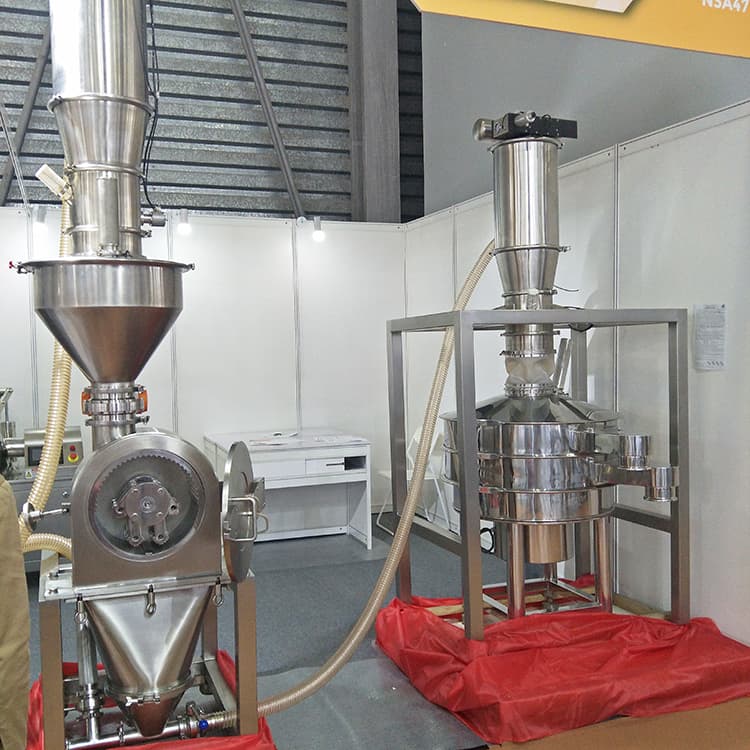

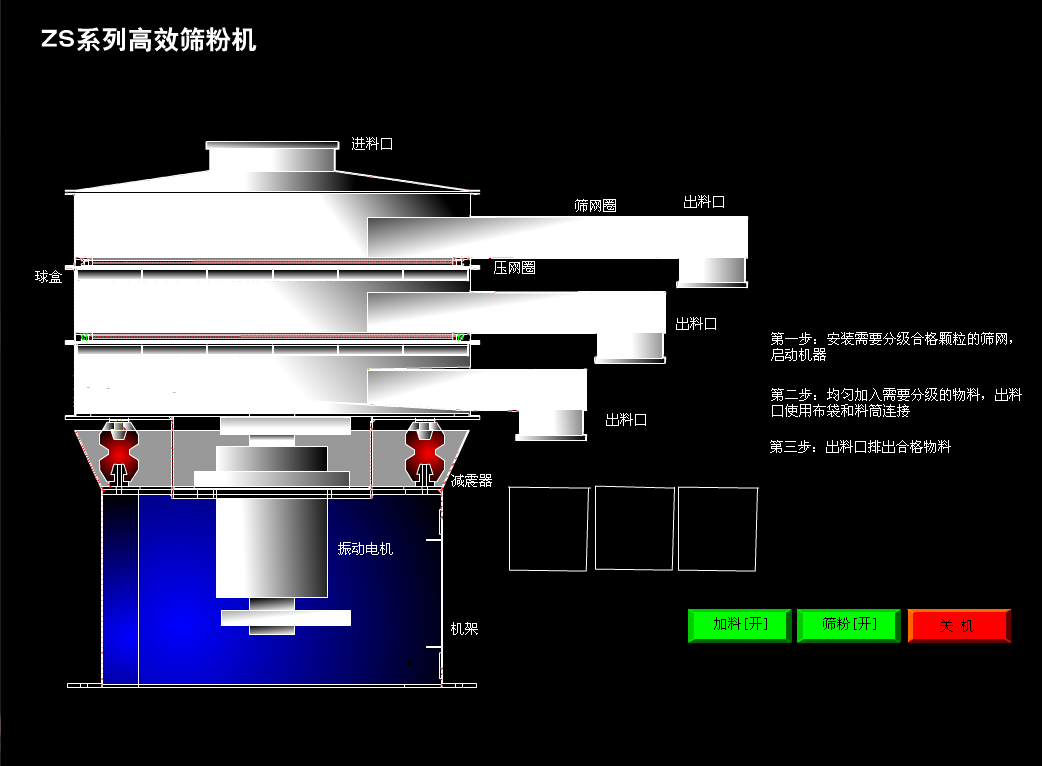

应用图:
特点:

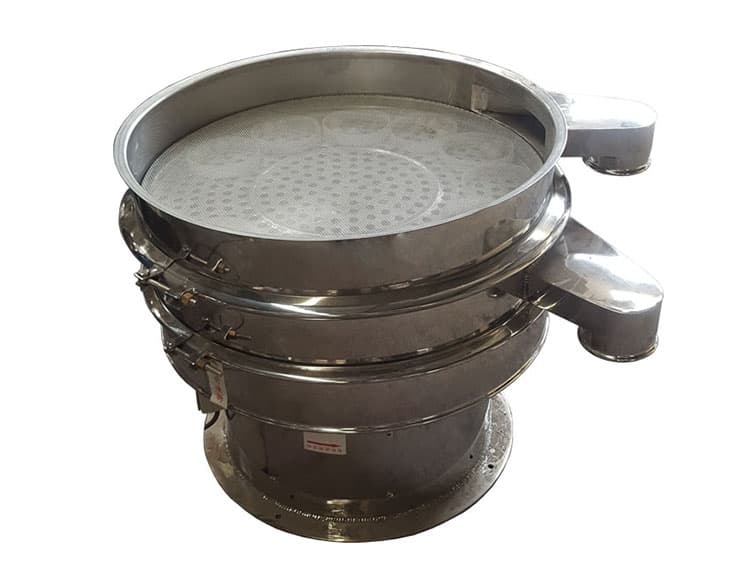

该机由立式激振電机,筛底, 网架, 筛粉室,橡胶振荡碗等各紧固件组成。本机可用于单层或多层筛网分选使用,具有结构紧凑、操作维修方便,运转平稳、噪音低、处理物料量大、细度小,适用广泛等优点。

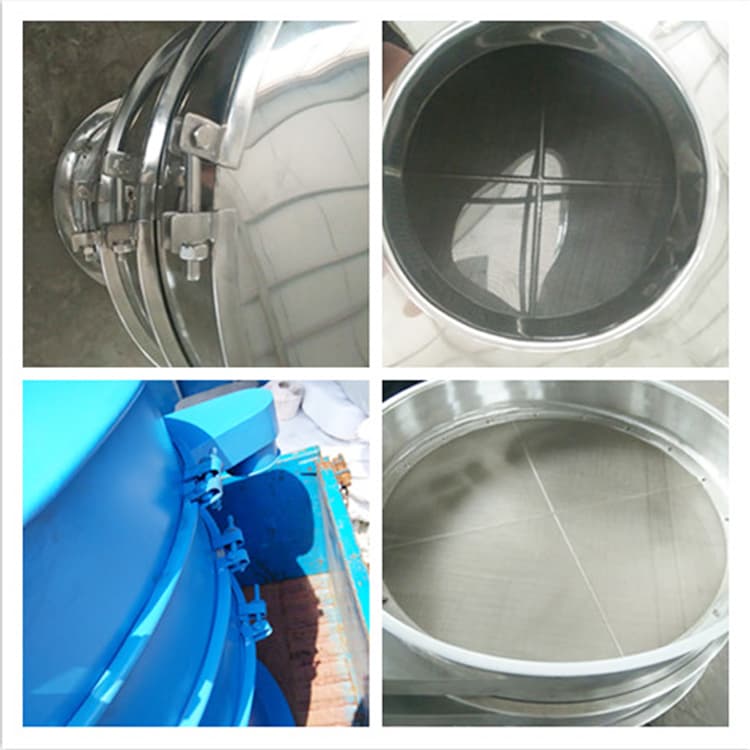

This machine is composed of vertical vibration motor,a sieve bottom, a mesh frame, sieve room,rubber vibrating bowl, and all fastening pieces.
It can be operated for sorting purpose either in single sieve or multi-sieves with a compact structure,
ease operating and repairing, smooth running, low noise,large target material-treating, good fineness and wide applicability.
技术参数:
应用案例:型号 | STGZ-400 | STGZ-600 | STGZ-800 | STGZ-1000 | STGZ-1200 |
产量(kg/h) | 20-200 | 150-1200 | 200-2000 | 250-3000 | 300-4000 |
外形尺寸 | 600*600*1000 | 800*800*1100 | 1100*950*1150 | 1100*1100*1250 | 1300*1300*1400 |
功率 | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 |
过筛目数 | 20-180 | 20-180 | 20-180 | 20-180 | 20-180 |
振动频率(r/min) | 1500 | 1500 | 1500 | 1500 | 1500 |
重量 | 120 | 180 | 220 | 300 | 400 |
