产品详情

cases Details

Applications

本机适用于制药，化工，食品等行业的干粉物料粒度的分级之用。

This machine is suitable for grading the granularity of dry powder materials in pharmaceutical, chemical and food industries.

Working principle

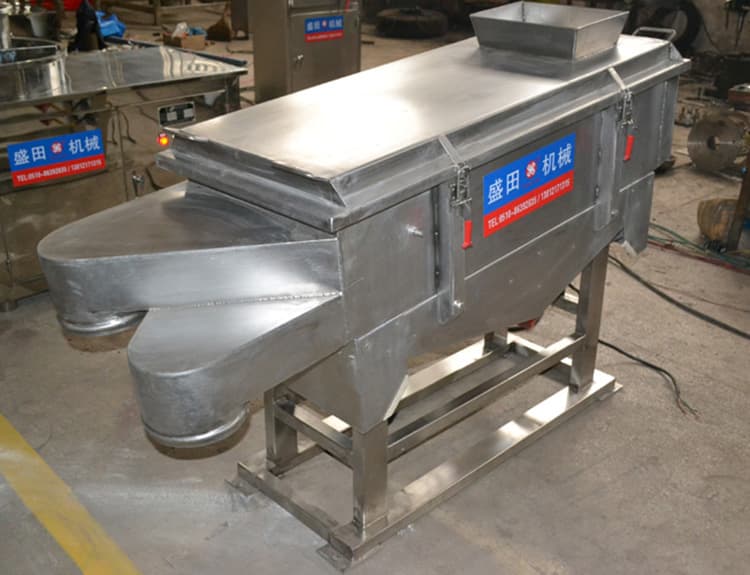

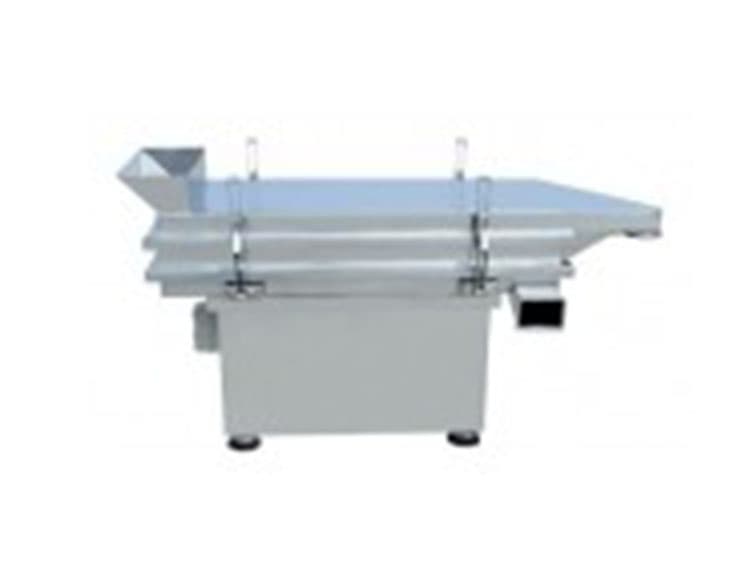

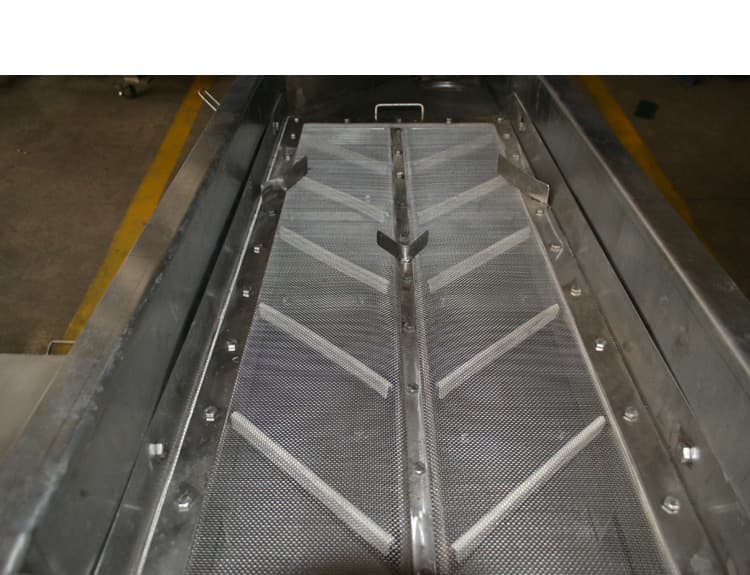

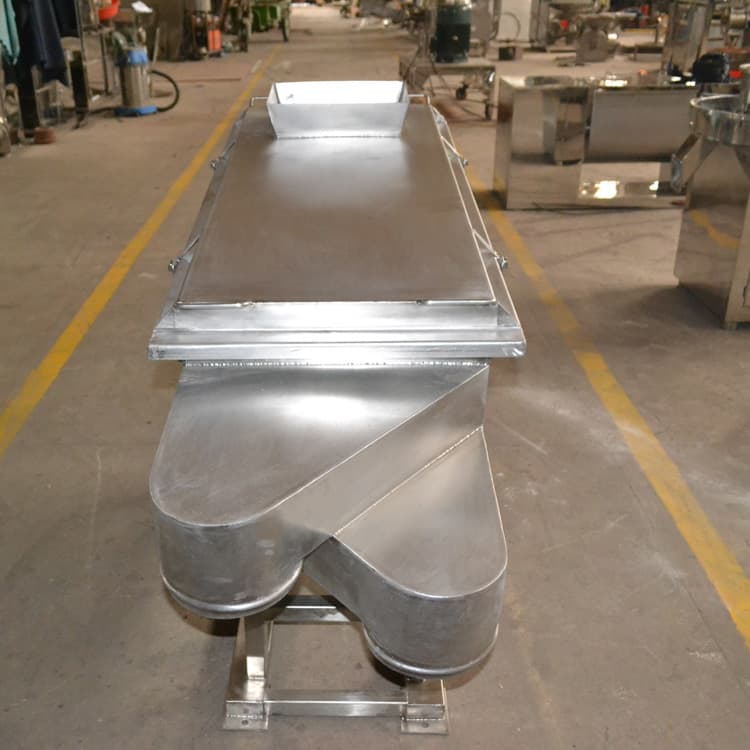

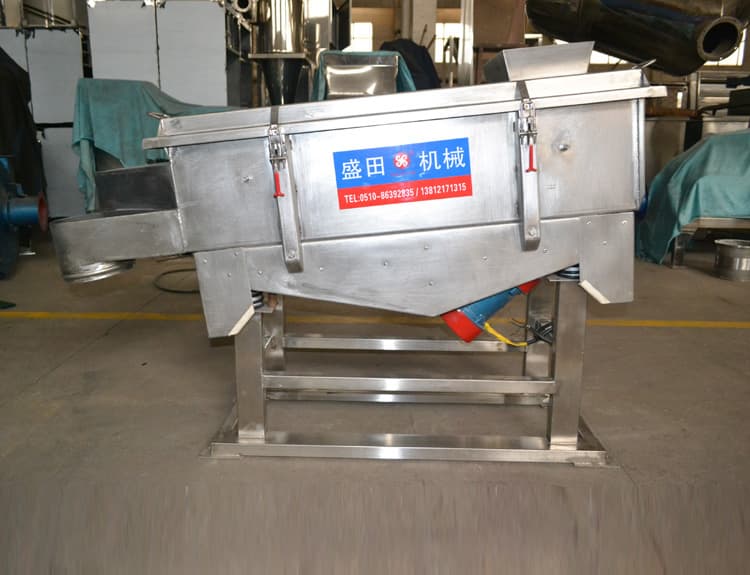

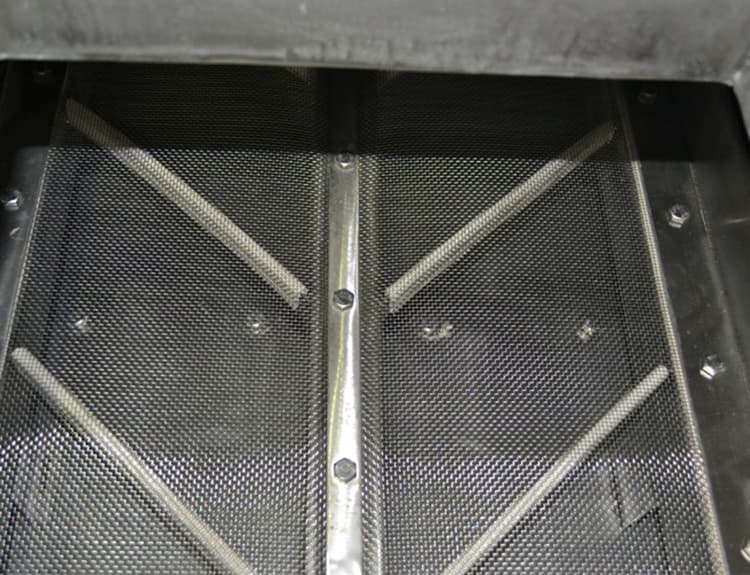

本机由筛箱，振动源及减震器三大部分组成。振动机架与筛箱连接有4-12组软橡胶减震器上下固定，产生离心力，由震器控制浮动振幅，

使物料有一个向下抛震和向下分层过滤的过程，从而达到*佳分级过筛的效果。

The machine consists of screen box, vibration source and shock absorber. There are 4-12 groups of soft rubber shock absorbers

fixed up and down between the vibration frame and the screen box, whick produce centrifugal force and control the floating

amplitude by the shock absorber, so that the material has a process of downward throwing and downward layered filtering , so as to achieve the best graded screening effect.

技术参数

Model	STCZ-0.3M2	STCZ-0.5M2	STCZ-0.8M2	STCZ-1.2M2	STCZ-1.8M2
Throughput(kg/h)	50-300	80-450	200-700	400-1100	700-1600
Overall dimension(mm)	1450550700	12006601250	16507501350	18008501450	220011001500
Power(kw)	0.2	0.2	0.2*2	0.4*2	0.4*2
Numbers screen(mesh)	2-150	2-150	2-150	2-150	2-150
Vibration frequency(r/min)	1400	1400	1400	1400	1400
Weight(kg)	120	180	220	300	400
